HBT series concrete pump, equipped with kawasaki hydraulic piston pump and Simens motor, is well
applied to building construction, bridge construction, water conservancy project, slope-protection and
tunnel construction and so on.
>>>Â Production Specifications
| Parameters | Unit | specifications | |||||
| Type of Power Machine | / | Electrical | |||||
| Main Motor | kw | 90 | |||||
| Main Oil Pump | / | FLUTECK Kawasaki K3V112 | |||||
| High/Low Switch | / | Yes | |||||
| Pumping Volume(Max) | m³/h | 66 | |||||
| Outlet Pressure | Mpa | 13 | |||||
| Rater Power | kw | 90 | |||||
| Distribution Valve Type | / | S Valve | |||||
| Concrete Cylinder Diameter*Stroke | mm | Φ200*1650 | |||||
| Main oil cylinder*Rod*Stroke | mm | Φ125*80*1600 | |||||
| Hopper Capacity*Feeding Height | L*mm | 600*1400 | |||||
| Max.Aggregate Size | mm | Pebble:50; Crushed Stone:40 | |||||
| Max.Horizontal Pumping Distance | m | 400m | |||||
| Max.Vertical Pumping Distance | m | 110m | |||||
| Total Weight | kg | 4500 | |||||
| Dimension(L*W*H) | mm | 6400*2100*2200 | |||||
>>>Â Product Advantage
1. Quality selection of leading a new genetation of domestic chassis,Lying flat headband,Using cummins engines.
2. A mature, reliable, strong power, excellent performance, Fuel economy, Reliability and durability advantages.
3. Elegant and chic appearance, ride comfort.
4. Using international famous brand Deutz cylinder diesel engine.
5. Powerful: high power, high efficiency.
6. Energy saving: low emission, low fuel consumption, low vibration, low noise.
7.Reliable and durable: long life, overhaul a long time, easy maintenance interior maintenance

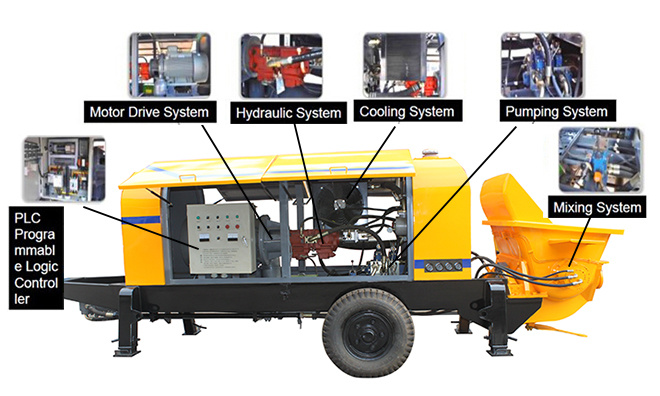

>>>Â Production Technology
1. Intelligent power control system to regulate the engine speed automatically,for smooth and efficient operation;
2. Plunger pump with constant power, to ensure the efficiency of main engine;
3. Good sealing S-valve, installed with floating wear resistant ring;
4. High-quality wear resistant alloy components for long service-life;
5. High delivery pressure for demand of high-rise and long distance projects;
6. Air cooling system, without dependence of external water;
7. PLC system to ensure best control performance;
8. With re-pumping function to smooth construction of better accessibility.
>>> Delivery &Payment &Package
1. Delivery time:Â 7-12Â days after receipt of your deposit.
2. Payment terms: 30% T/T in advance, the balance is paid (by T/T or L/C) before delivery.Â
3. Goods are transported by sea,2 units can be packed in 1x20HQ. Or 1Â unit machine plus 1Â unit small
loader can be packed in 1X20HQ.
>>> Our ServicesÂ
1. According to your inquiry, We will reply to you in 24 hours.
2. After-sales service: We will send the technical personnel to the site for installation, commissioning
and training work.
3. Warranty:12 Month.Warranty period, in addition to the force majeure and man-made factors, the
damage caused by design, process and manufacturing equipment, the seller is responsible for sending
people to offer free repair.
4. We will send the spare parts as soon as possible when necessary, equipment repair parts provided
by the seller are original, authentic, quality goods.
>>> Company Information:
Pully company is a professional manufacturer and supplier of construction machinery in China. OurÂ
company which specializes in R&D. manufacturing, selling and after-sales service of concrete pumpÂ
with mixer,which had more than 13 years manufacture experience. Our company can provide stationary
concrete pump, trailer concrete mixer pump and truck mounted concrete mixer pump,concrete mixer,
wheel loader and so on.
>>>F AÂ Q
1. Are you manufacturer?
----Yes, we are manufacture of concrete machineries since 2004,we can provide stationary concrete pump,
trailer concrete mixer pump and truck mounted concrete mixer pump, Micro wheel loader, Construction
elevator and Suspended platform and so on.
2. Do you have discount for the orders?
----It depends on your order quantity, the more you order, the more discount you can get.
3. What certifications you have ?
----ISO9001:2008 and other domestic certifications and memberships.
4. Do you have aftersales service?How you will supply with the service?
----Yes, of course. Engineers are available by the third party in overseas, service in 24 hours
5. Do you supply with some free spare parts and tools what are they?
----Yes, we supply with some free spare parts of machines and repaire tools
HBT series concrete pump, equipped with kawasaki hydraulic piston pump and Simens motor, is well
applied to building construction, bridge construction, water conservancy project, slope-protection and
tunnel construction and so on.
>>>Â Production Specifications
| Parameters | Unit | specifications | |||||
| Type of Power Machine | / | Electrical | |||||
| Main Motor | kw | 90 | |||||
| Main Oil Pump | / | FLUTECK Kawasaki K3V112 | |||||
| High/Low Switch | / | Yes | |||||
| Pumping Volume(Max) | m³/h | 66 | |||||
| Outlet Pressure | Mpa | 13 | |||||
| Rater Power | kw | 90 | |||||
| Distribution Valve Type | / | S Valve | |||||
| Concrete Cylinder Diameter*Stroke | mm | Φ200*1650 | |||||
| Main oil cylinder*Rod*Stroke | mm | Φ125*80*1600 | |||||
| Hopper Capacity*Feeding Height | L*mm | 600*1400 | |||||
| Max.Aggregate Size | mm | Pebble:50; Crushed Stone:40 | |||||
| Max.Horizontal Pumping Distance | m | 400m | |||||
| Max.Vertical Pumping Distance | m | 110m | |||||
| Total Weight | kg | 4500 | |||||
| Dimension(L*W*H) | mm | 6400*2100*2200 | |||||
>>>Â Product Advantage
1. Quality selection of leading a new genetation of domestic chassis,Lying flat headband,Using cummins engines.
2. A mature, reliable, strong power, excellent performance, Fuel economy, Reliability and durability advantages.
3. Elegant and chic appearance, ride comfort.
4. Using international famous brand Deutz cylinder diesel engine.
5. Powerful: high power, high efficiency.
6. Energy saving: low emission, low fuel consumption, low vibration, low noise.
7.Reliable and durable: long life, overhaul a long time, easy maintenance interior maintenance
>>>Â Production Technology
1. Intelligent power control system to regulate the engine speed automatically,for smooth and efficient operation;
2. Plunger pump with constant power, to ensure the efficiency of main engine;
3. Good sealing S-valve, installed with floating wear resistant ring;
4. High-quality wear resistant alloy components for long service-life;
5. High delivery pressure for demand of high-rise and long distance projects;
6. Air cooling system, without dependence of external water;
7. PLC system to ensure best control performance;
8. With re-pumping function to smooth construction of better accessibility.
>>> Delivery &Payment &Package
1. Delivery time:Â 7-12Â days after receipt of your deposit.
2. Payment terms: 30% T/T in advance, the balance is paid (by T/T or L/C) before delivery.Â
3. Goods are transported by sea,2 units can be packed in 1x20HQ. Or 1Â unit machine plus 1Â unit small
loader can be packed in 1X20HQ.
>>> Our ServicesÂ
1. According to your inquiry, We will reply to you in 24 hours.
2. After-sales service: We will send the technical personnel to the site for installation, commissioning
and training work.
3. Warranty:12 Month.Warranty period, in addition to the force majeure and man-made factors, the
damage caused by design, process and manufacturing equipment, the seller is responsible for sending
people to offer free repair.
4. We will send the spare parts as soon as possible when necessary, equipment repair parts provided
by the seller are original, authentic, quality goods.
>>> Company Information:
Pully company is a professional manufacturer and supplier of construction machinery in China. OurÂ
company which specializes in R&D. manufacturing, selling and after-sales service of concrete pumpÂ
with mixer,which had more than 13 years manufacture experience. Our company can provide stationary
concrete pump, trailer concrete mixer pump and truck mounted concrete mixer pump,concrete mixer,
wheel loader and so on.
>>>F AÂ Q
1. Are you manufacturer?
----Yes, we are manufacture of concrete machineries since 2004,we can provide stationary concrete pump,
trailer concrete mixer pump and truck mounted concrete mixer pump, Micro wheel loader, Construction
elevator and Suspended platform and so on.
2. Do you have discount for the orders?
----It depends on your order quantity, the more you order, the more discount you can get.
3. What certifications you have ?
----ISO9001:2008 and other domestic certifications and memberships.
4. Do you have aftersales service?How you will supply with the service?
----Yes, of course. Engineers are available by the third party in overseas, service in 24 hours
5. Do you supply with some free spare parts and tools what are they?
----Yes, we supply with some free spare parts of machines and repaire tools
